  • Quick and easy disassembly
  • Includes interchangeable color panels in Red and Blue (Figure A)
  • Armrests are padded and adjustable
  • Quick connect batteries
  • Ergonomic throttle control
  • Height-adjustable swivel seat with two-tone upholstery
  • Flat-free, non-marking tires
  • Large, plastic carry basket
  • Easy-to-adjust tiller
  • Anti-tip wheels
  • Headlight
  • Swivel seat with fold-down backrest
  • Easy free wheel operation


Base Weight63 lbs.
Batteries (pair)12V x 20AH
Battery Weight (pair)31 lbs.
Charger1.5A Offboard
Climbing Angle
Dimensions39" (L) x 22.5" (W)
Drive System24(V) x 350(W) x 3600 rpm
Floor to Seat Height20" - 22"
Front Wheel9" x 3" Flat-free
Ground Clearance3.75"
Heaviest Piece Weight32 lbs. (Front Section)
Maximum Range15 miles
Motor24V x 350W x 3600 rpm
Rear Wheels9" x 3" Flat-free
Seat Dimensions17.5" (W) x 17" (D)
Seat TypeFolding
Seat Weight21 lbs.
Top Speed4 mph
Total Weight (excl. hand control)115 lbs.
Turning Radius43"
Warranty on Batteries12 Months
Warranty on Drive Train Components24 Months
Warranty on Electronic Controller24 Months
Warranty on FrameLifetime
Weight Capacity350 lbs
Weight Capacity (13046 | 13046-HD)350 lbs.
Wheel Base Dimensions (L x W)29.1" x 19.1"






UPC # 822383293257

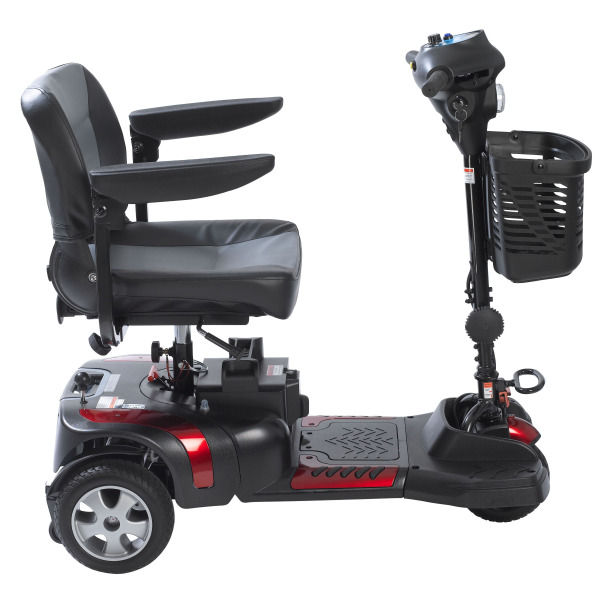

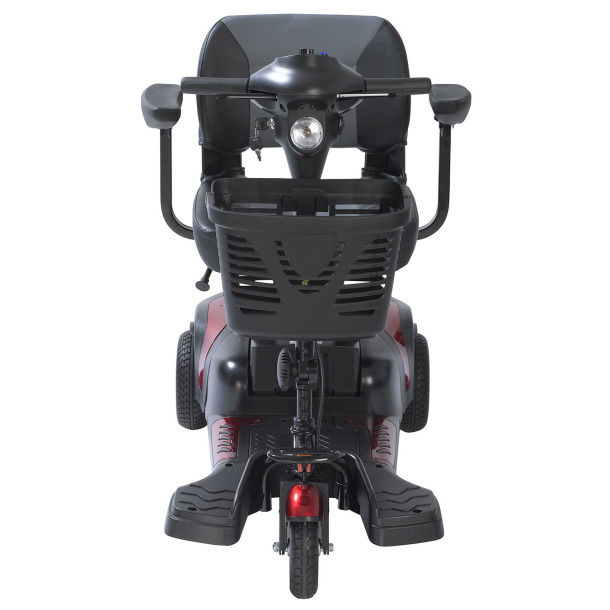

Phoenix HD 3

SKU: 212W1903100089
